ProteusQ™-LT – Scanning NV Microscopy at low temperatures

Qnami ProteusQ-LT is a complete scanning NV microscope for operations at cryogenic temperatures (2.5K). Built from the ground up for material scientists it provides new state of the art in nanoscale imaging, while minimizing the operational overheads traditionally related to low-temperature scanning probe microscopy.

Exceptional Performance

<50nm resolution and micro Tesla sensitivity opens a new world for nanoscale material exploration in cryogenic conditions

Get started quickly

Unique accessibility and automated procedures allow you to focus your time on your research

Support

Our unique team of expert engineers and scientists supports you in your research

Re-inventing nanoscale imaging at cryogenic temperatures

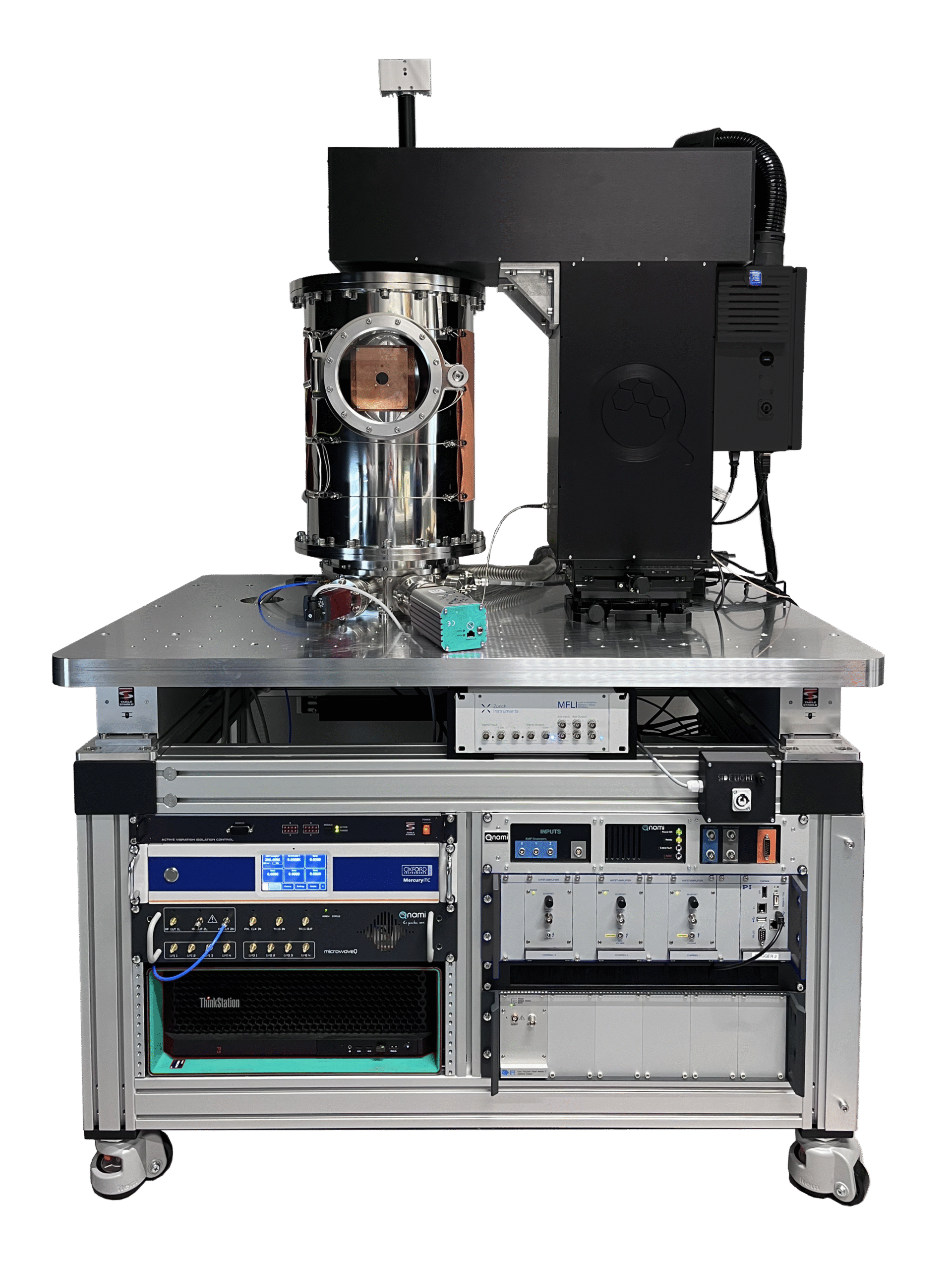

ProteusQ-LT table-top design offers a new approach to microscopy in cryogenic environments. Unprecedented accessibility and wide optical access simplify day to day operations.

Description
Specifications

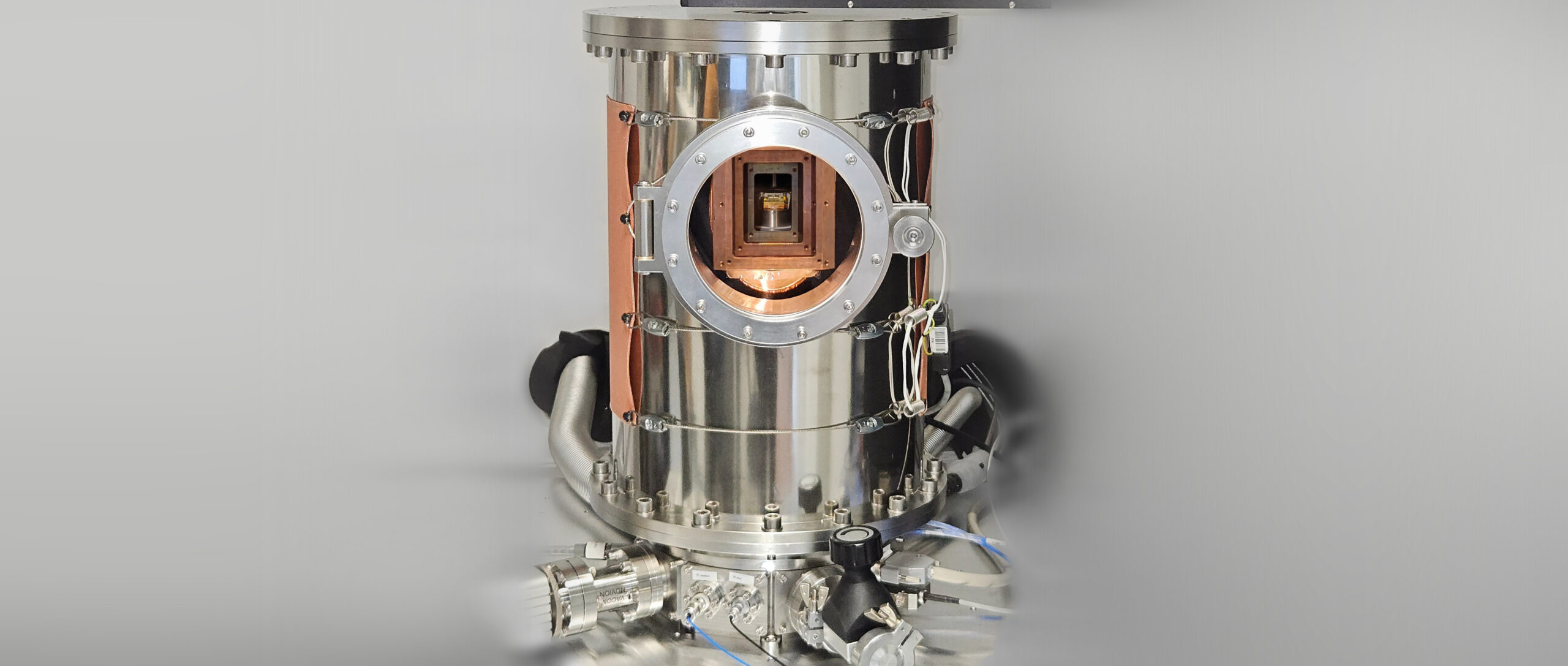

Table-top cryostat platform

  • Powered by Qinu
  • 2.5K base temperature
  • Ultra-low vibration levels

Sample and probes

  • Compatible with QuantileverTM high resolution probe technology
  • Safe and fast probe and sample exchange mechanisms
  • Top and later optical access with large fields of view

SNVM

  • Optimized photon collection efficiency ensuring uT sensitivity
  • Large scan ranges
  • LabQ software interface (same as ProteusQ)
  • Minimum Temperature 2.5K
  • Magnetic Sensitivity 3uT/sqrtHz (CW-ODMR)
  • Spatial Resolution <50nm
  • Sample Scan Range 12 x 12 x 6um @4K
  • Optical Scan Range 100 x 100um
  • Optical side access with CMOS camera for sample & probe observation
  • Imaging modalities (continous-wave): Quenching mode, IsoB, Dual-IsoB, FullB, Fast-FullB
  • Imaging modalities (pulsed): Rabi, T1, T2, Ramsey and customized sequences via Tool-Box
  • Optional superconductive vector magnet with up to 0.5 x 0.5 x 3T field

LabQ User Interface

The ProteusQ-LT is fully integrated with our LabQ software interface, providing the same consistent and reliable platform used across the ProteusQ product line.

Built on the open-source Qudi framework, LabQ offers an intuitive environment for working with multiple measurement modalities. Years of development across our platforms ensure a stable, feature-rich, and well-tested toolset.

Key features

  • Unified interface – A consistent workflow across all ProteusQ systems.
  • Automation – Streamlined alignment and routine procedures.
  • Advanced capabilities – Powerful tools to support complex experimental setups.

The result is a microscope and software ecosystem designed to make advanced measurements more accessible, efficient, and reproducible.

Cryogenic Quantum Microscopy Applications

Novel chiral quantum light source

/
Scanning NV Magnetometry proves how a novel combination of van der Waals materials is the easy and effective chiral quantum light source of the future.

Scanning NV magnetometry reveals magnetic textures in 2D material CrBr3 in cryogenic environment

/
Applying scanning NV magnetometry to cryogenic temperatures allowed Professor Wrachtrup and his collaborators to reveal magnetic domains and study their dynamics in atomically thin van der Waals magnets.

Do you want to know more about our Quantum Microscope?

Get in touch with Joerg. He'll be happy to answer all your questions about ProteusQ.

Our other products

AppLab Service

With our AppLab Service we will measure your samples on the Qnami ProteusQ.

Qnami ProteusQ™

Capture surface magnetic fields at the atomic scale with Qnami’s Quantum Microscope – ProteusQ.

Qnami ProteusQ™-LT

Capture nanoscale magnetic fields at cryogenic temperatures with Qnami’s Quantum Microscope – ProteusQ.
